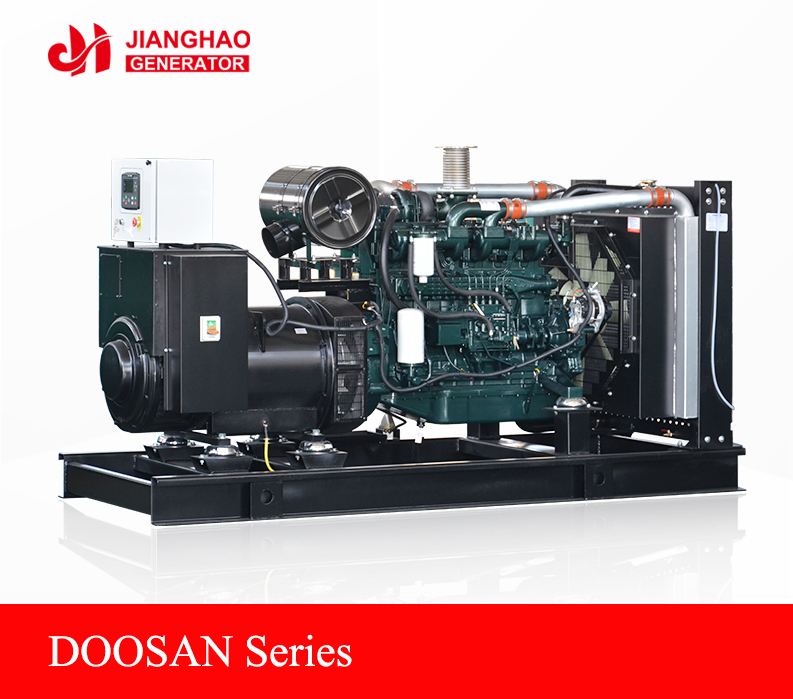

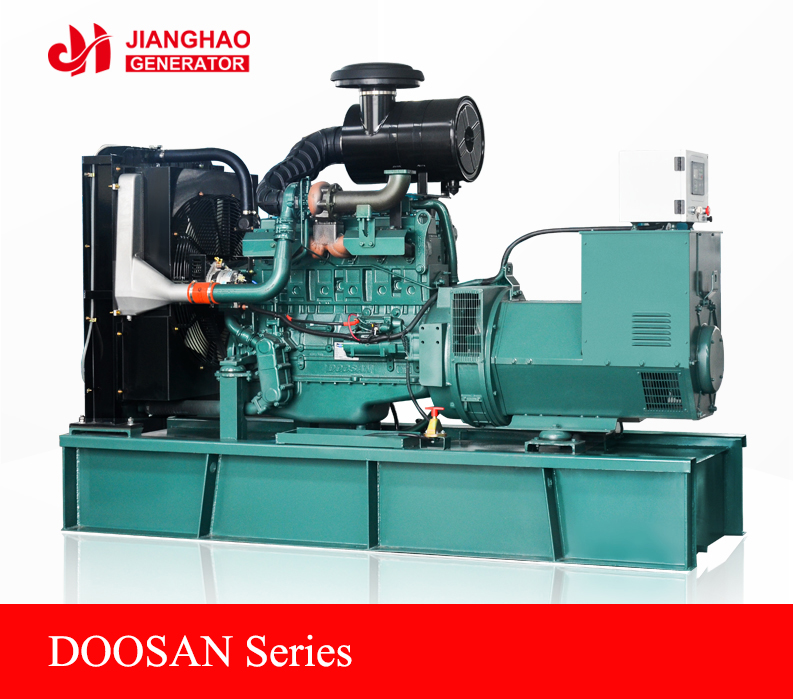

Doosan Diesel Generator
As an integrated diesel engine manufacturer, Doosan Engine is specialized in diesel engines for large vessels, as well as the construction of internal combustion power plants that use diesel engines. Doosan Engine has the second largest global market share with an annual production capacity of 9 million bhp. With 20 years of experience, Doosan Engine recorded an annual order backlog of more than $ 1 billion in the last three consecutive years.
| Type | Output Power |
Cuurrent (A) | Engine model | Cylinder |
Bore*Stroke (mm) |
FuelCon. (L) |
Dis. g/kw.h |
Dimension(mm ) L*W*H | Weight(kg) | |
| KW | KVA | |||||||||
| NHD-50GF | 50 | 62.5 | 90 | DB58 | 6 | 102*118 | 5.785 | 215 | 2000*730*1150 | 900 |
| NHD-64GF | 64 | 80 | 115.2 | D1146 | 6 | 111*139 | 8.071 | 222 | 2200*800*1500 | 1100 |
| NHD-75GF | 75 | 93.7 | 135 | D1146 | 6 | 111*139 | 8.071 | 222 | 2200*800*1500 | 1100 |
| NHD-100GF | 100 | 125 | 180 | D1146T | 6 | 111*139 | 8.071 | 200 | 2300*800*1500 | 1500 |
| NHD-120GF | 120 | 150 | 216 | DP086TA | 6 | 111*139 | 8.1 | 201 | 2300*800*1500 | 1600 |
| NHD-132GF | 132 | 165 | 237.6 | DP086TA | 6 | 111*139 | 8.1 | 202 | 2300*800*1500 | 1600 |
| NHD-150GF | 150 | 136 | 270 | P086TI-1 | 6 | 111*139 | 8.071 | 207 | 2550*1000*1500 | 1750 |
| NHD-180GF | 180 | 225 | 324 | P086TI | 6 | 111*139 | 8.071 | 202 | 2600*1000*1500 | 1800 |
| NHD-200GF | 200 | 250 | 360 | DP086LA | 6 | 111*139 | 8.1 | 203 | 2700*1000*1500 | 1800 |
| NHD-220GF | 220 | 275 | 396 | P126TI | 6 | 123*155 | 11.051 | 205 | 2900*1050*1650 | 2400 |
| NHD-240GF | 240 | 300 | 432 | P126TI | 6 | 123*155 | 11.051 | 205 | 2900*1050*1650 | 2400 |
| NHD-260GF | 260 | 325 | 468 | P126TI-II | 6 | 123*155 | 11.051 | 202 | 3000*1050*1650 | 2600 |
| NHD-300GF | 300 | 375 | 540 | P158LE-1 | 8 | 128*142 | 14.618 | 232 | 3100*1400*1850 | 2700 |
| NHD-320GF | 320 | 400 | 576 | P158LE-1 | 8 | 128*142 | 14.618 | 232 | 3100*1400*1850 | 2700 |
| NHD-350GF | 350 | 437.5 | 630 | P158LE | 8 | 128*142 | 14.618 | 209 | 3100*1400*1850 | 2800 |
| NHD-400GF | 400 | 500 | 720 | P158LE-S | 8 | 128*142 | 14.618 | 210 | 3120*1400*1850 | 3000 |
| NHD-440GF | 440 | 550 | 792 | P180LE | 10 | 128*142 | 18.273 | 205 | 3300*1400*1850 | 3200 |
| NHD-500GF | 500 | 625 | 900 | P222LE-1 | 12 | 128*142 | 21.927 | 200 | 3400*1400*1850 | 3500 |
| NHD-550GF | 550 | 687.5 | 990 | P222LE-S | 12 | 128*142 | 21.927 | 207 | 3400*1400*1850 | 3700 |
| NHD-600GF | 600 | 750 | 1080 | P222LE-II | 12 | 128*142 | 21.927 | 210 | 3500*1400*1850 | 4000 |
| NHD-650GF | 650 | 812.5 | 1170 | P222FE-II | 12 | 128*142 | 25.42 | 207 | 3600*1400*1850 | 4500 |
1.Above technical parameters speed is 500RPM, frequency 50HZ, rated voltage 400 / 230V, power factor 0.8, and 3-phase 4-wire. 60HZ diesel generators can be made according to the specific needs of customers.
2.Alternator is based on customer needs, you can choose from Wuxi Stamford, Shanghai Hengsheng(recommend), Shanghai marathon and other famous brands.
3 The parameter list above are for reference only, subject to change without notice.
